Imlochhammer PMK 500VD – DHD 350


HAMMER SPECIFICATIONSAIR CONSUMPTION
PSIBARCFMM³/min
WEIGHT62 Kg15010,33108,8
LENGTH970 mm20013,842111,8
OUTSIDE DIAM. CYLINDER118 mm25017,253015
MAX WORKING PRESSURE24 BAR30020,765518,5
THREAD3" 1/2 API REG3502478022

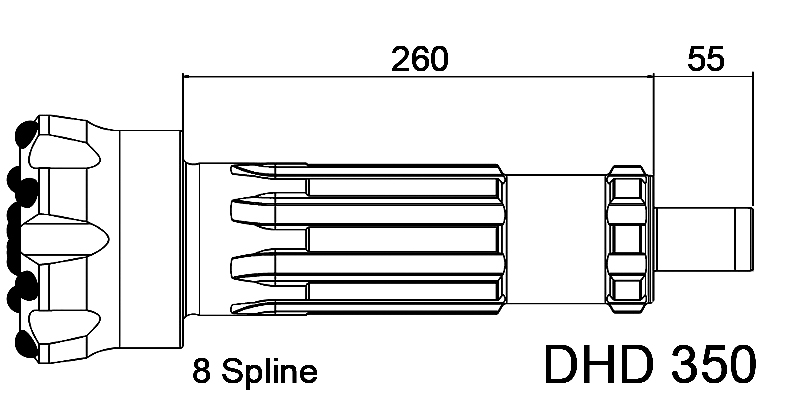

BIT SHANK – INGERSOLL RAND DHD 350 (ATLAS COPCO / EPIROC COP 54)

Download Catalogue

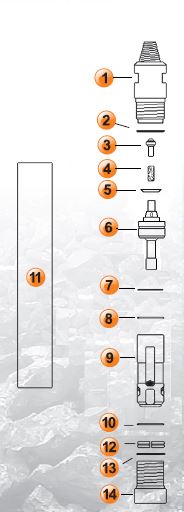

ITEMDESCRIPTIONPART N°
1BACKHEADOC-01-05
2O-RINGOC-02-05
3N.R. VALVEOC-03-05
4N.R.V. SPRINGOC-04-05
5SPRING B.OC-05-05
6AIR DISTRIBUTOROC-06-05
7O-RINGOC-07-05
8RETAINING RINGOC-08-05
9PISTONOC-09-05
10RETAINING RINGOC-10-05
11CYLINDEROC-11-05
12BIT RETAINING RINGOC-12-05
13O-RINGOC-13-05
14CHUCKOC-14-05

WATER WELL
GEOTHERMAL
SHALLOW OIL & GAS
EXPLORATION
CONSTRUCTION

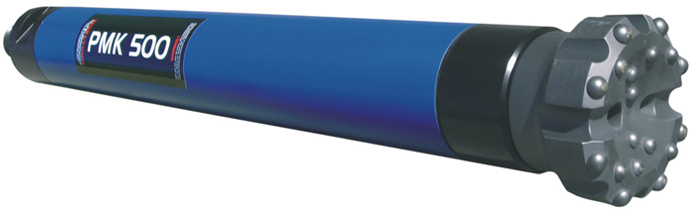

A high performance DTH hammer for all rock conditions. Hammer with 118 mm diameter outer is also suitable for water well drilling.
Superior Designs, built for drilling 130 – 152 mm (5 1/2″ – 6″) dia. holes and operates at optimum air pressure between 10.5 – 24 bar (150 – 350 psi).
The PMK 500VD hammer is designed to accept Button Bits with shank Ingersoll Rand DHD 350 or ATLAS COPCO / EPIROC COP 54 type.
