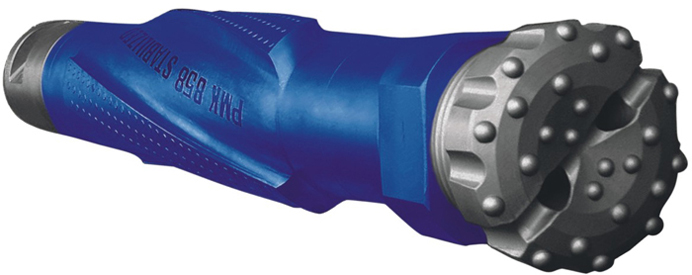

Marteau Fond Trou Stabilisateur PMK 105HS – SD8 / DHD 380 / QL80


HAMMER SPECIFICATIONSAIR CONSUMPTION
WEIGHT243 KgPSIBARCFMM³/min
LENGTH1210 mm15010,344013,2
OUTSIDE DIAM. STABILIZER248 mm20013,862018,5
OUTSIDE DIAM. CYLINDER175 mm25017,280022,5
 MAX WORKING PRESSURE24 BAR30020,789027,2
THREAD 4" 1/2 API REG35024110032,5

BIT SHANK – SANDVIK MISSION SD8 – PMK 105HS D 254 mm / (10″)

Download Catalogue

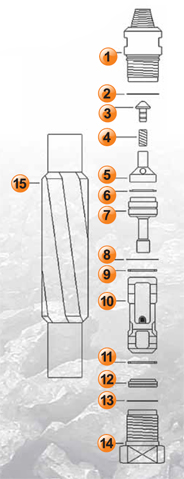

ITEMDESCRIPTIONPART N°
1BAKHEADOC-01-105
2O-RINGOC-02-105
3CHECK VALVEOC-03-105
4VALVE SPRINGOC-04-105
5AIR DISTRIBUTOROC-05-105
6SPRING B.OC-06-105
7CONTROL TUBEOC-07-105
8O-RINGOC-08-105
9RETAINING RINGOC-09-105
10PISTONOC-10-105
11RETAINING RINGOC-11-105
12BIT RETAINING RINGOC-12-105
13O-RINGOC-13-105
14CHUCKOC-14-105
15CYLINDEROC-15-105

WATER WELL
SHALLOW OIL & GAS
EXPLORATION
CONSTRUCTION

Superior Performance in Hard, Medium or Soft Rock conditions.
Guarantee of perfect holes thanks to the integrated stabilizer with the cylinder.
Stabilizer cover with 252 bits tungsten carbide for extended service life in abrasive conditions and is also suitable for water well drilling.
Designed to accept Button Bits with shank Sandvik Mission SD8.
